What is FMEA?
  • FMEA (Failure Mode and Effect Analysis) is a methodology to systematically identify potential failures, their likelihood, severity, and detectability, in order to proactively prevent risks in products and processes.
  • It prioritizes issues based on risk and provides effective preventive measures, enabling organizations to establish appropriate solutions and mitigation strategies.

VisualPro FMEA
Feature Overview

1. Supports the 7 steps of AIAG-VDA FMEA.

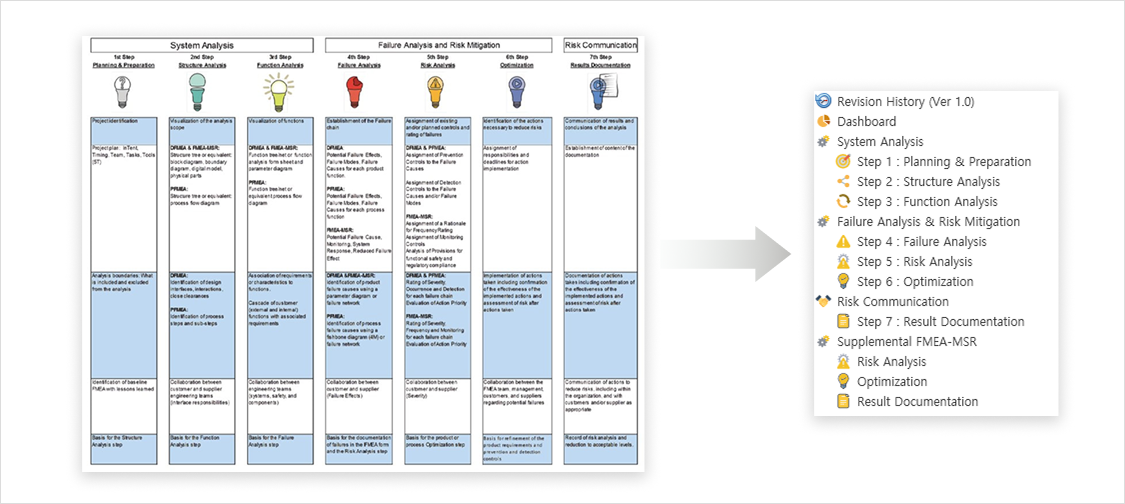

VisualPro FMEA seven-step process — system analysis (planning and preparation, structure analysis, function analysis), failure analysis and risk mitigation (failure analysis, risk analysis, optimization) and risk communication (result documentation) mapped to the VisualPro menu

2. Supports creation of function and failure networks.

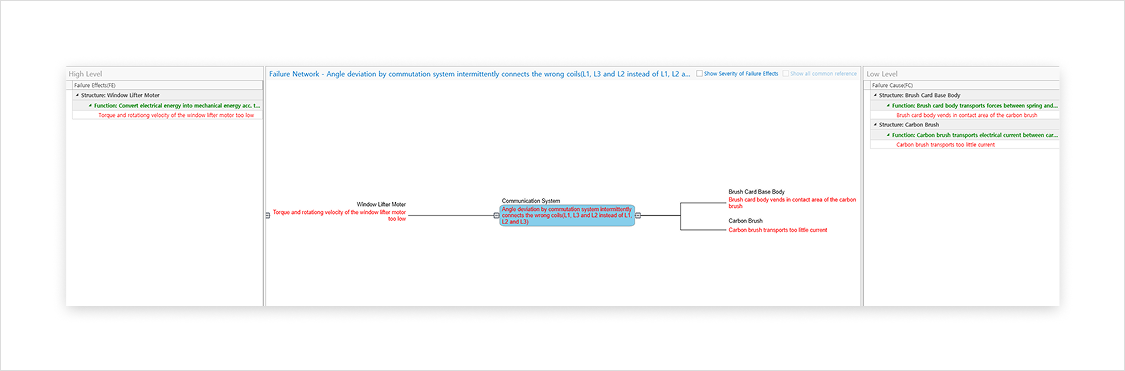

VisualPro FMEA failure network screen linking high-level failure effects, a window lifter motor communication system failure, and low-level failure causes in the brush card base body and carbon brush

3. Automatic AP (Action Priority) calculation support

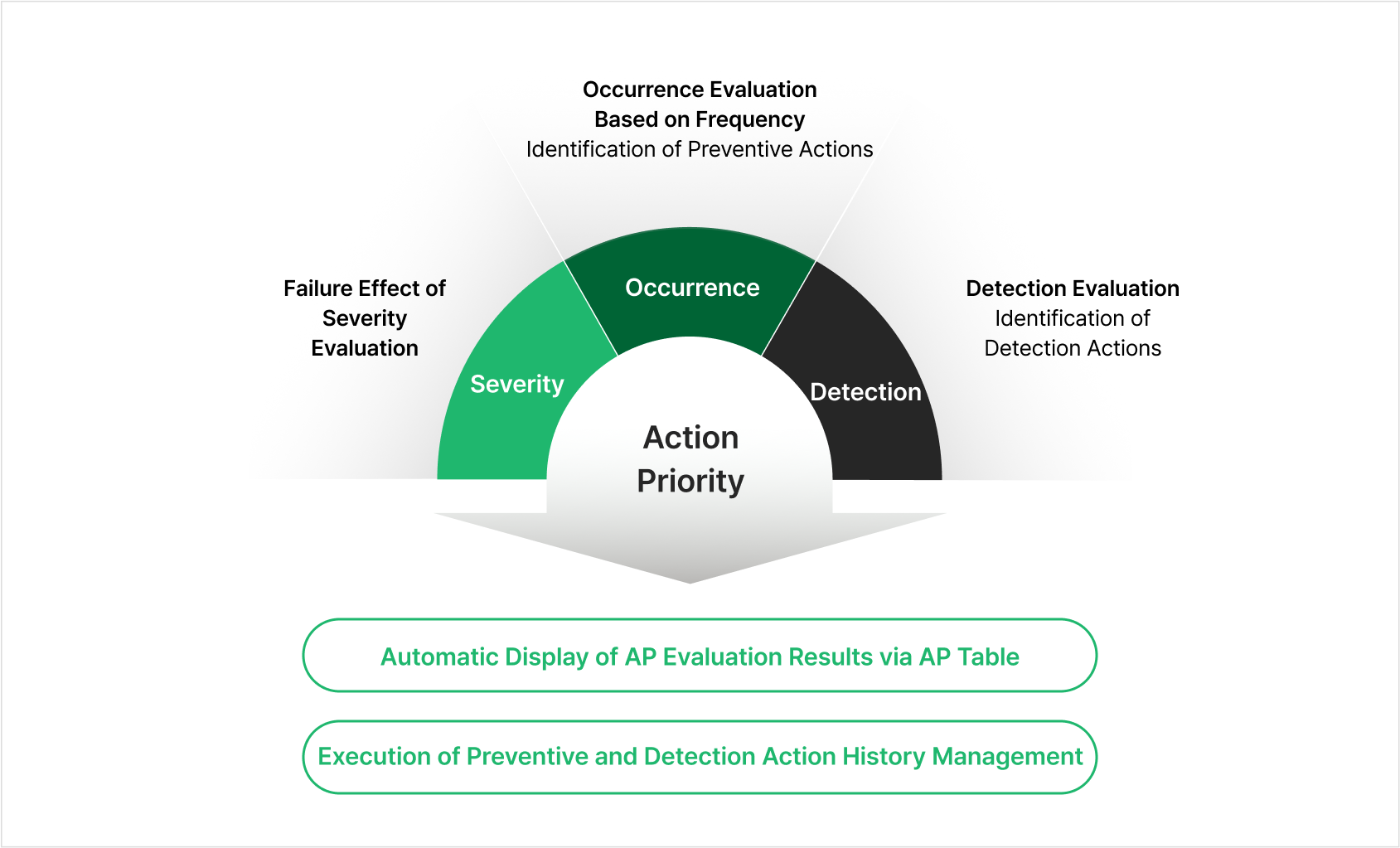

VisualPro FMEA Action Priority diagram — severity, occurrence and detection evaluations combine into an action priority shown automatically in the AP table, with preventive and detection action history management

4. Provides a variety of convenience functions for FMEA users.

Automatic Report Generation

Automatic Network Generation

Dashboard Support

FMEA MSR Support

S, O, D, AP User SettingS

Structure Export/Import

5. FMEDA Support (Automatic calculation of SPF, LF, PMHF values according to ASIL levels).

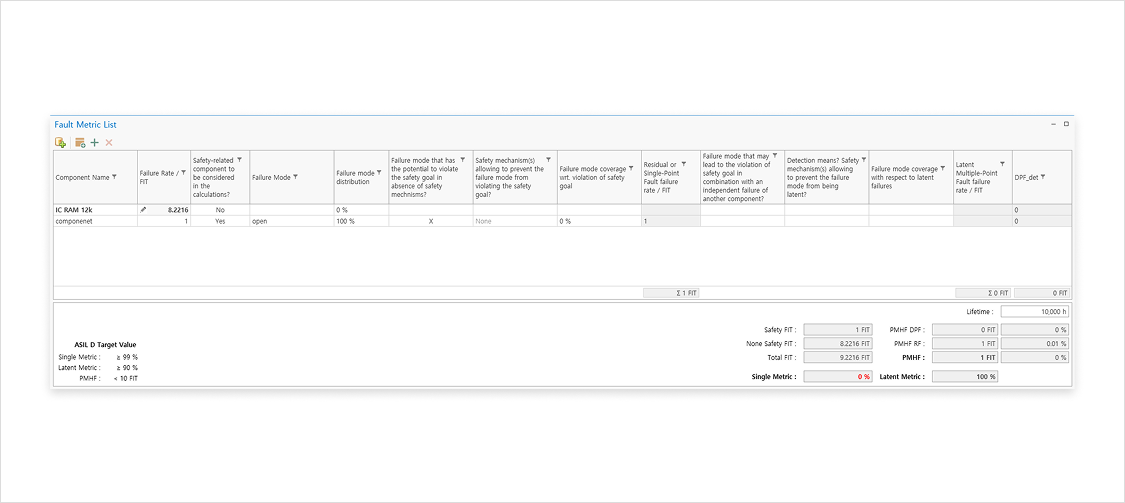

VisualPro FMEDA Fault Metric List screen with per-component failure rates in FIT and ASIL D target values for the single-point fault metric, latent fault metric and PMHF

6. Alignment with SN 29500 & IEC 62380 (supports searches per part)

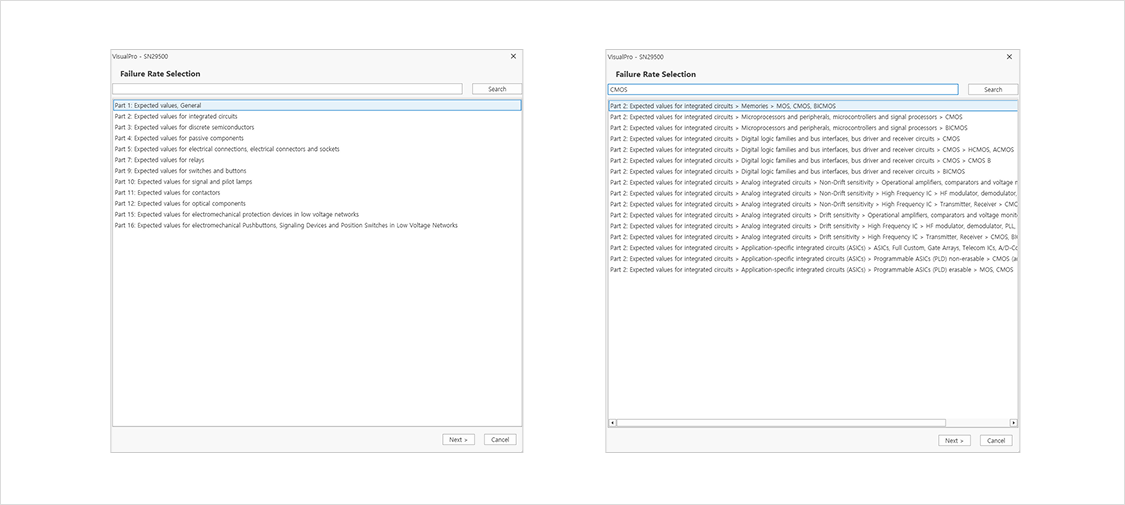

VisualPro failure rate selection dialog based on the SN 29500 standard, listing expected values by part category and filtered to CMOS integrated circuits
